Model gateway, routing and evaluation

Hard constraints come first, then quality, cost and latency are compared: rule out the models that are not allowed, then choose among those that are. With no permitted candidate, the work pauses or goes to a person.

In developmentNot availableVerified

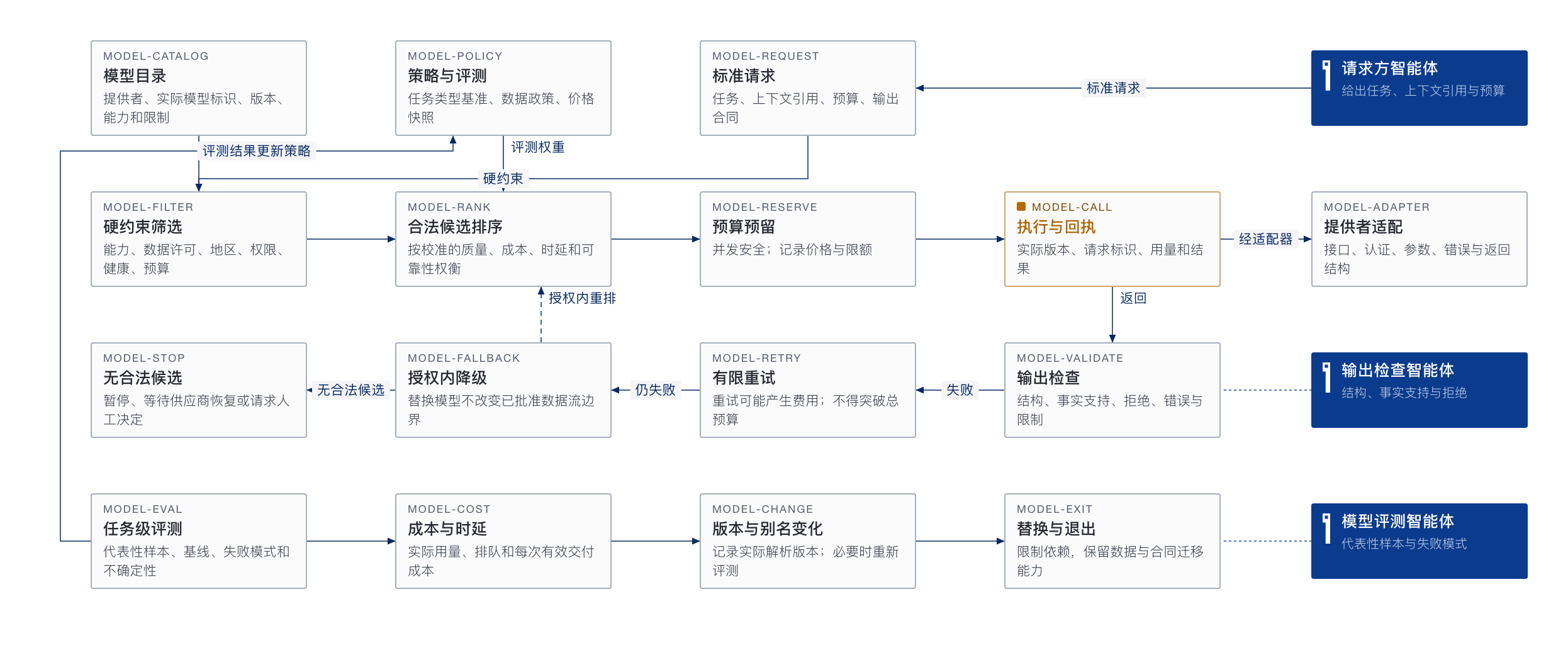

Model gateway, routing and evaluation diagram (A17) (open full-size figure)
MYRILUM architecture map v2.2 · A17 (public edition). Labels are in Chinese; every element is listed in English below. Select the diagram to open it at full size.

What this map shows

This is MYRILUM's target architecture. It does not mean everything on the map is live; whether a capability can be used today is stated in “Current availability”.

Hard constraints first, then quality, cost and latency are compared; with no permitted candidate, the work pauses or goes to a person.

First rule out the models that are not allowed, then choose a suitable one among those that are.

Registration and request standardization

Model catalogProvider, actual model identifier, version, capabilities and limits
Policies and evaluationBenchmarks per task type, data policies and price snapshots
Standard requestTask, context references, budget and output contract
Provider adapterInterface, authentication, parameters, errors and response structure

How routing chooses

Hard-constraint filterCapability, data permission, region, authorization, health and budget
Ranking permitted candidatesWeighs calibrated quality, cost, latency and reliability
Budget reservationSafe under concurrency; records price and limits
Execution and receiptActual version, request identifier, usage and result

Results and exceptions

Output checksStructure, factual support, refusals, errors and limits
Limited retriesRetries may cost money and never exceed the total budget
Fallback within authorizationA replacement model never changes the approved data-flow boundary
No permitted candidatePause, wait for the provider to recover, or ask a person to decide

Continuous evaluation and provider governance

Task-level evaluationRepresentative samples, baselines, failure modes and uncertainty
Cost and latencyActual usage, queueing and the cost of each effective delivery
Version and alias changesRecords the version actually resolved; re-evaluates when needed
Replacement and exitLimits dependence and keeps the ability to migrate data and contracts

Source

This page follows A17 of the MYRILUM architecture map v2.2 (public edition: restricted products and internal open items are left out). Related: “AI execution architecture”; “Agent runtime and failure recovery”; “Observability, quality, cost and operations”.
