Data and memory lifecycle

Material is registered with its source, rights and purpose when it enters the platform; memory is kept apart by scope and is never a business ledger; reuse needs permission, and deletion is traceable to the end.

In developmentNot availableVerified

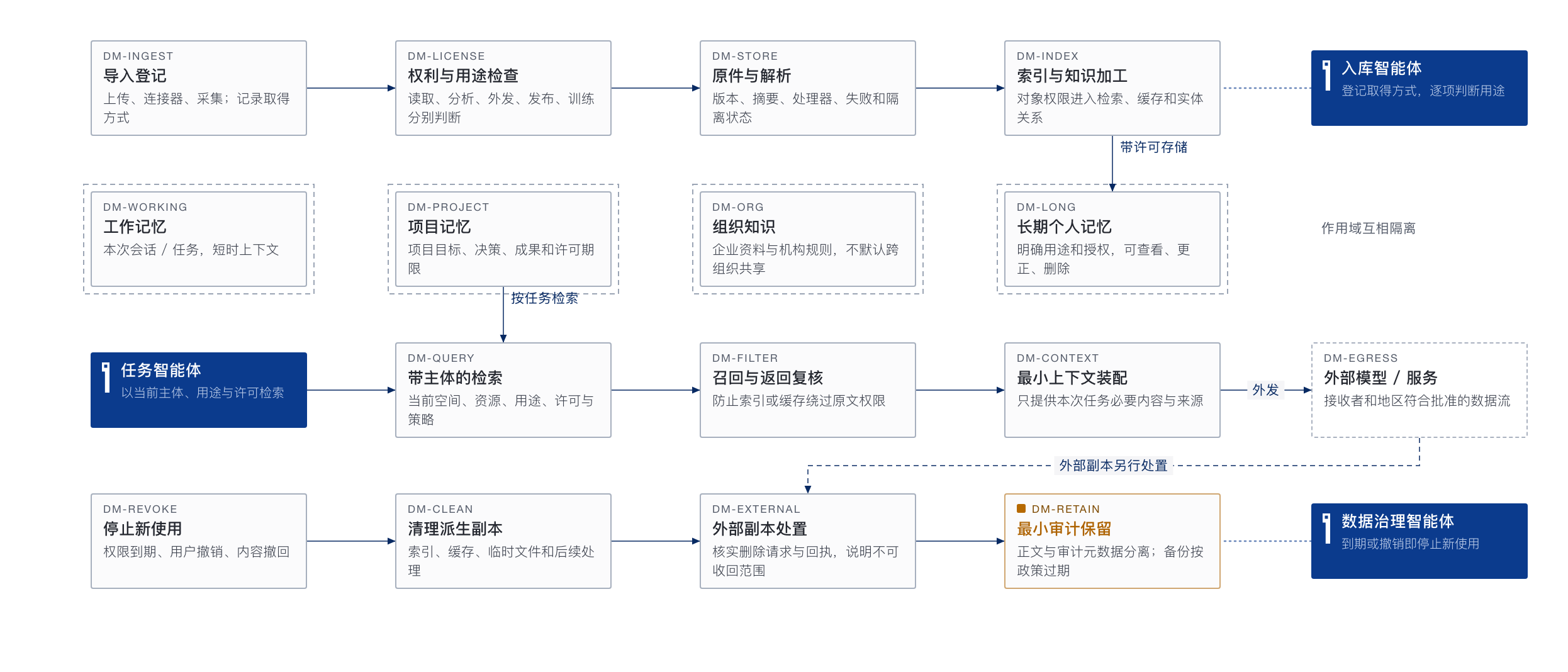

Data and memory lifecycle diagram (A20) (open full-size figure)
MYRILUM architecture map v2.2 · A20 (public edition). Labels are in Chinese; every element is listed in English below. Select the diagram to open it at full size.

What this map shows

This is MYRILUM's target architecture. It does not mean everything on the map is live; whether a capability can be used today is stated in “Current availability”.

Every piece of material carries its source, ownership, purpose, time, licence and deletion path.

Data entering the platform does not mean it may flow freely across the ecosystem; every reuse needs a scope and a purpose.

Acquiring and processing data

Intake registrationUploads, connectors and collection; records how the material was obtained
Rights and purpose checkReading, analysis, sending out, publishing and training are each judged separately
Originals and parsingVersions, digests, processors, failures and quarantine status
Indexing and knowledge processingObject permissions carry into search, caches and entity relationships

Memory has different scopes

Working memoryThis session or task; short-lived context
Project memoryProject goals, decisions, results and licence periods
Organization knowledgeEnterprise material and institutional rules; not shared across organizations by default
Long-term personal memoryA stated purpose and authorization; can be viewed, corrected and deleted

Reading, reuse and sending out

Retrieval with a subjectThe current space, resource, purpose, licence and policy
Re-checking what is recalled and returnedStops an index or cache from bypassing the original's permissions
Minimal context assemblySupplies only the content and sources this task needs
External models and servicesRecipients and regions match the approved data flow

Revocation, deletion and retention

Stopping new usePermission expiry, user revocation or content withdrawal
Cleaning derived copiesIndexes, caches, temporary files and downstream processing
Handling external copiesVerifies deletion requests and receipts; states what cannot be recalled
Minimal audit retentionContent is kept apart from audit metadata; backups expire by policy

Source

This page follows A20 of the MYRILUM architecture map v2.2 (public edition: restricted products and internal open items are left out). Related: “Data, knowledge, memory and evidence”; “Regions, disaster recovery and exit”.
