Tool gateway, APIs and external integration

Protocols provide connection while business contracts define responsibility; external content and tool results are never a source of authorization. API, MCP and A2A are adapter tracks that never replace MYRILUM's tasks, permissions, budgets and commercial rules.

In developmentNot availableVerified

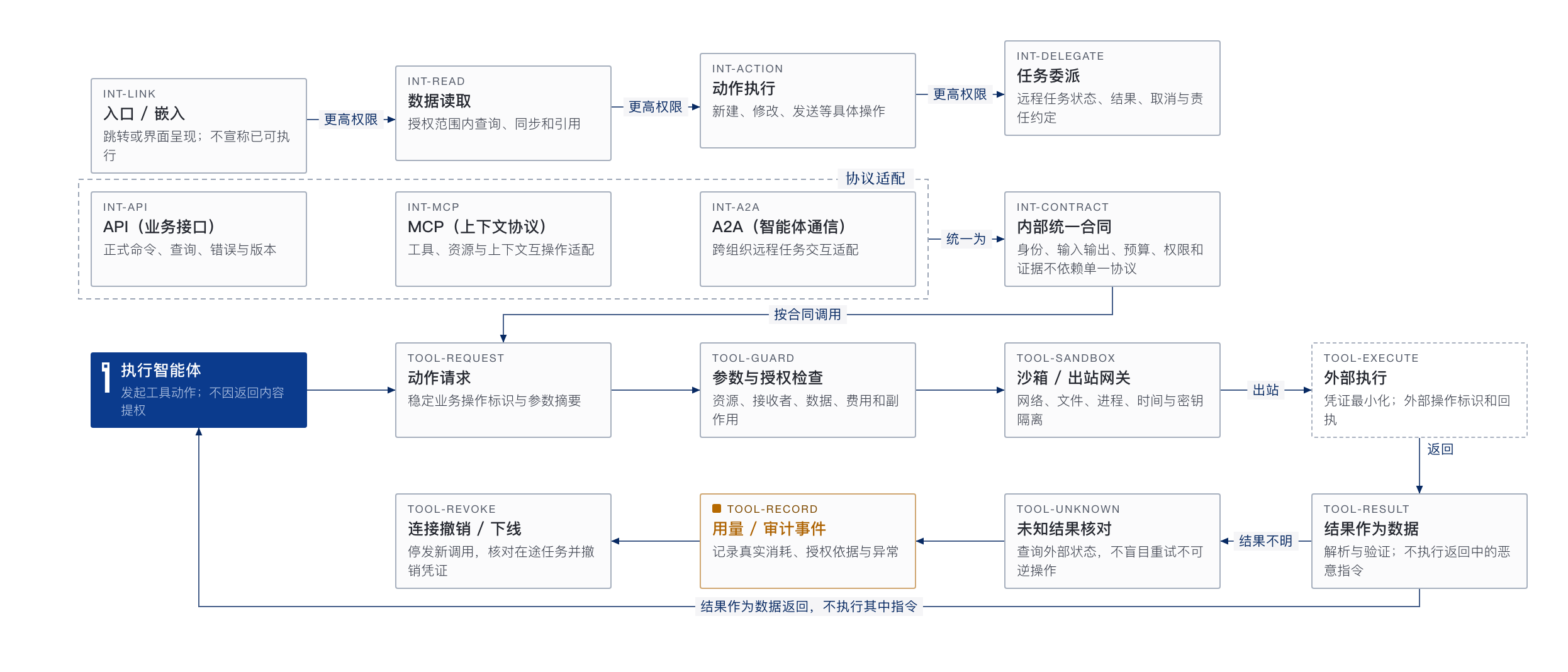

Tool gateway, APIs and external integration diagram (A18) (open full-size figure)
MYRILUM architecture map v2.2 · A18 (public edition). Labels are in Chinese; every element is listed in English below. Select the diagram to open it at full size.

What this map shows

This is MYRILUM's target architecture. It does not mean everything on the map is live; whether a capability can be used today is stated in “Current availability”.

Protocols provide connection and business contracts define responsibility; external content and tool results can never become a source of authorization.

API, MCP and A2A are adapter tracks; they never replace MYRILUM's task, permission, budget and commercial rules.

Real integration levels for external capabilities

Entry or embedA link or on-screen presentation; never claimed as executable
Reading dataQueries, sync and references within the authorized scope
Taking actionSpecific operations such as creating, changing or sending
Delegating a taskAgreed remote task status, results, cancellation and responsibility

Protocol adapters and the platform contract

API (business interface)Formal commands, queries, errors and versions
MCP (context protocol)Adapter for interoperating tools, resources and context
A2A (agent-to-agent)Adapter for remote task exchange across organizations
One internal contractIdentity, inputs and outputs, budget, permissions and evidence never depend on a single protocol

Every tool operation is checked

Action requestStable business operation identifier and a digest of the parameters
Parameter and authorization checkResources, recipients, data, fees and side effects
Sandbox and outbound gatewayIsolation of network, files, processes, time and keys
External executionMinimal credentials; external operation identifiers and receipts

Returning, checking and exiting

Results are dataParsed and verified; malicious instructions in a result are never executed
Reconciling unknown resultsQuery the external state; never blindly retry an irreversible operation
Usage and audit eventsRecords the real consumption, the authorization basis and exceptions
Revoking or retiring a connectionStops new calls, checks in-flight tasks and revokes credentials

Source

This page follows A18 of the MYRILUM architecture map v2.2 (public edition: restricted products and internal open items are left out). Related: “The developer and capability release lifecycle”; “Identity, authorization and access decisions”; “Commands, events and consistency”.
